TEXI O PREMIUM EX
Electronic buttonhole machine - complete machine with 2 years warranty
Industrial sewing › Buttonhole machines




Description:
Multifunctional, fully automatic buttonhole machine equipped with built-in fast and precise stepping motors working in x and y axis and Direct Drive system with servo motor mounted in machine head. Equipped with touch control panel.
Automatic functions: foot lifter, thread trimming, fabric feeding, sewing speed regulation, cloth cutting mechanism (multi-cut system - buttonhole of any length, without changing the knife).
Machine equipped with the safety device which prevents fabric from cutting in case of thread breaking. Thanks to applying a modern technology, lubrication is limited to the minimum (what prevents the formation of spots on the sewing products).
Technical specification:
- for sewing light and medium fabrics
- standard clamps size 29 x 5 mm and 40 x 6 mm
- automatic adjustment of the buttonhole cut-out to the buttonhole length, without changing the knife (multi-cut system)

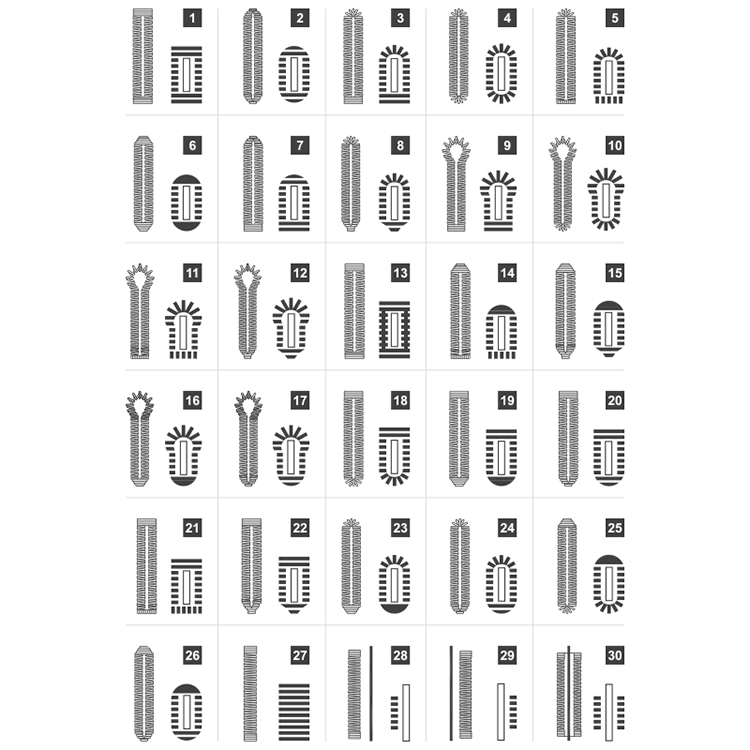

- 30 buttonhole patterns in standard (including 4 bar tacking programs)
- possibility of self designing of buttonholes and storing them in panel (up to 99 programs)
- active thread tension mechanism
- foot lifting up to 14 mm
- maximum sewing speed 3.600 s.p.m.
- voltage 220-240V
- integrated, energy-saving AC Servo motor and stepping motors
- energy-saving LED lamp
- needles system 135x5
Offered in TEXI PREMIUM EX package.
2 YEARS WARRANTY PREMIUM EX
Texi buttonhole machines have 2-year, full warranty.
STAND HD TEXI PREMIUM SILVER - steel, stable and durable stand for heavy machines with height adjustment (69-83 cm) and oilier holder. Powder painted in silver colour RAL 9006, which fits to line of Ergolinia chairs.
TABLE TOP TO PREMIUM - the highest quality table top made of moisture resistant birch plywood (30 layer) which perfectly damps vibrations. PREMIUM table top surface is coated with a special laminate resistant to impact, abrasion and splinters. Sides protected by ABS slats. TEXI PREMIUM table tops do not contains harmful ingredients.
Dimensions 106 x 57 x 4 cm (length x width x height).
Enjoy the silence, save energy.
Technical specification:
Buttonhole type | lockstitch buttonhole |
Type of sewing material | light, medium |
Type of buttonhole machine | electronic |
Buttonhole width | 2.5 - 5.0 mm |
Buttonhole length | 9.4 - 38.0 mm |
Cut-out length | 6.4 - 31.8 mm |
LED lighting of working field | yes |
Max. sewing speed | 3600 s.p.m. |
Needle system | 135X5 |
Power supply | 230 V |
Table top | Kessler 106 x 57 cm |
Warranty period | 24 months |
