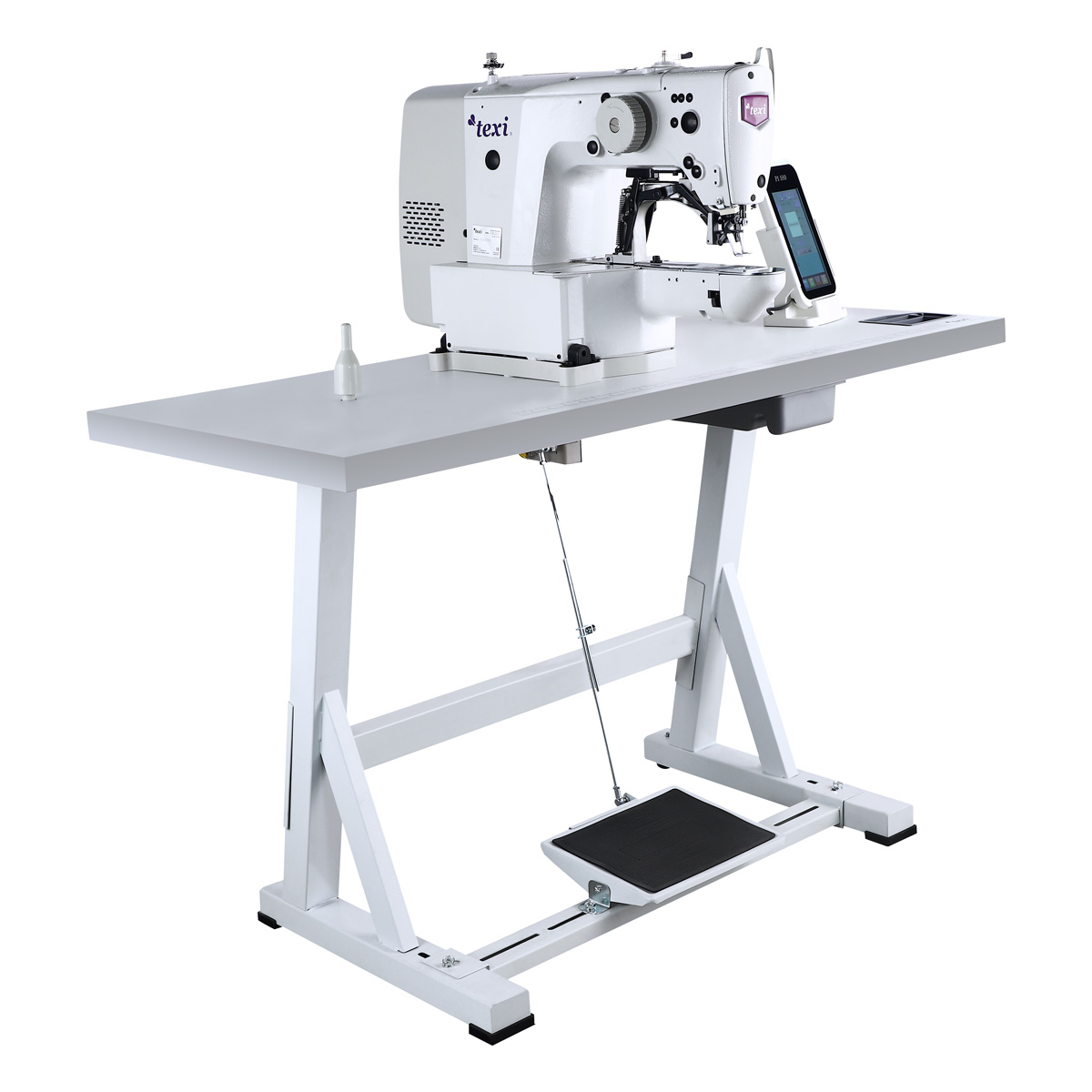

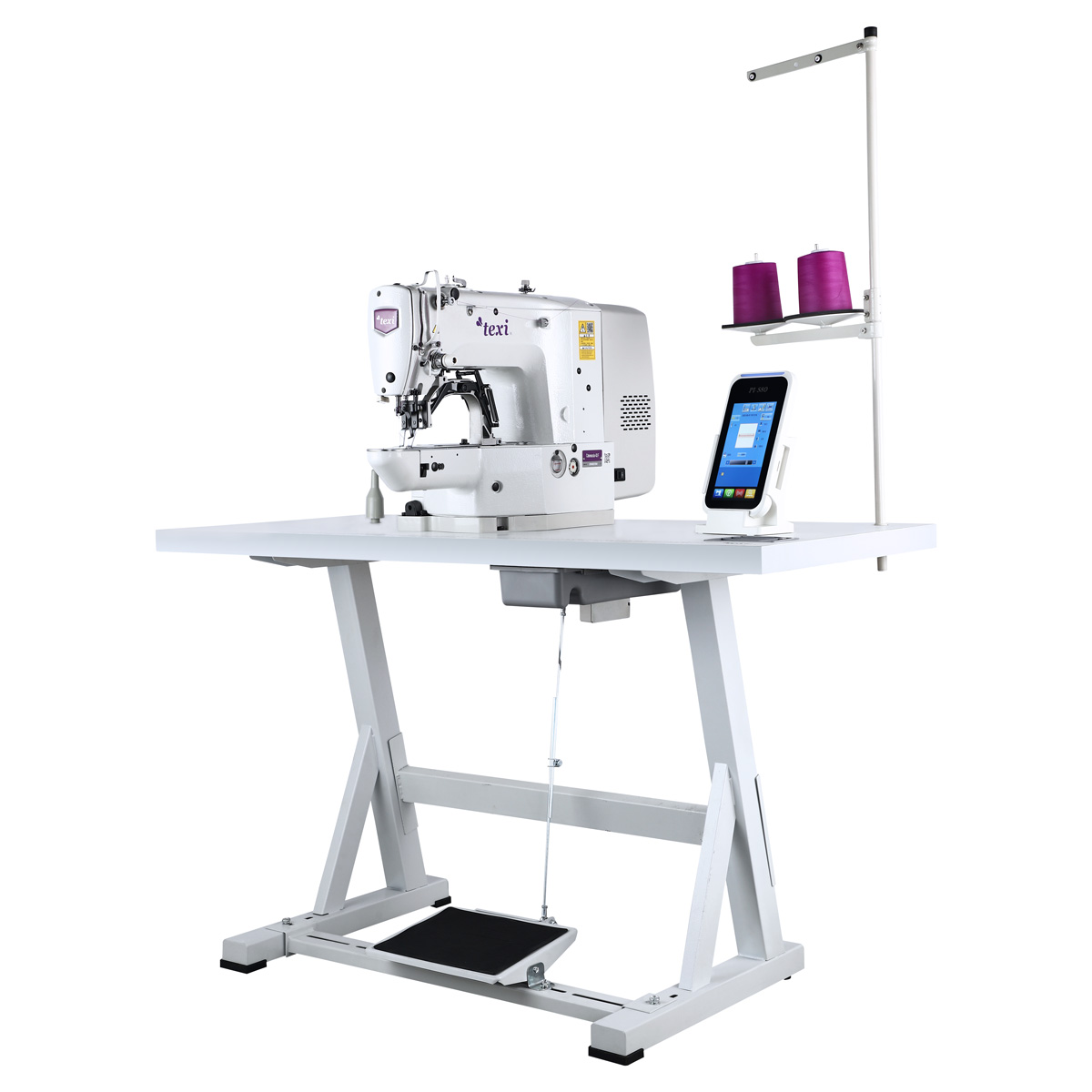

Electronic bartacker 40x30mm TEXI CATENACCIO 43F

Description:

Electronic bartacker 40×30 mm – for light and medium fabrics

TEXI CATENACCIO 43F PREMIUM is an industrial electronic bartacker with a sewing area of 40×30 mm, designed for light and medium fabrics. CNC control, integrated AC Servo motor and closed oil system provide high precision and ease of use. The LED lamp ensures bright lighting of the working area.

Technical specifications

Max sewing speed 3000 sti/min. Stitch length and width adjustable in the range of 0.1–10 mm. Feed: CNC. Clamp size 40×30 mm. Lubrication: central, closed circuit. Presser foot lift up to 17 mm. Needles: system 135x17.

Main features

• Automatic needle positioning


• Automatic thread trimming


• Automatic presser foot lifting


• Thread wiper


• Initial stitch controller


• Built-in AC Servo motor


• Closed oil system


• LED lamp

Sewing machine ready to work

Delivered as a complete set – head on table with stand and drive.

Recommended needle system

135x17

Warranty

24-month warranty.
