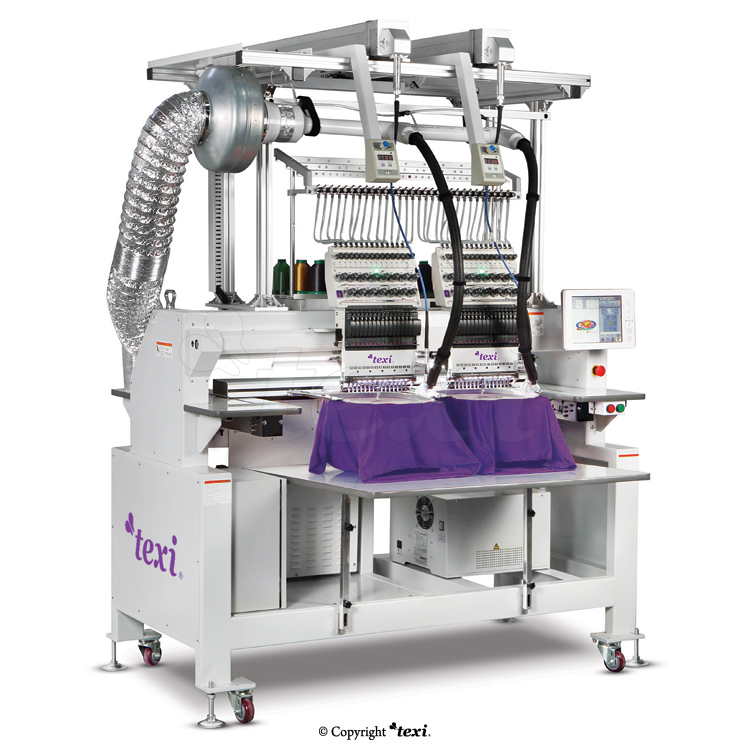

TEXI 1502 TS PREMIUM LC SET is a 15-needle, two-head embroidery machine with laser instrumentation for cutting patterns.

Description:

TEXI 1502 TS PREMIUM LC SET is a 15-needle, two-head embroidery machine with laser instrumentation for cutting patterns.

Thanks to the modern laser system, the texi embroidery machine gains new possibilities in making embroidery. Both embroidery heads have a laser attached that can cut many types of materials. The laser allows cutting the top layer of material, and the bottom leaves intact.
Technical specification:
- 1 head
- 15 needles/colors (threads)
- Max. hoop size: up to 450 x 400mm
- 12 hoops in standard (6 sizes):
1) 2 x circular, diam. 90 mm,
2) 2 x circular, diam. 120 mm,
3) 2 x circular, diam. 150 mm,
4) 2 x circular, diam. 200 mm,
5) 2 x square 290 x 290 mm,
6) 2 x oval 540 x 350 mm
- equipment for embroidering on cap
- 270° wide angle cap system
- cylindrical arm

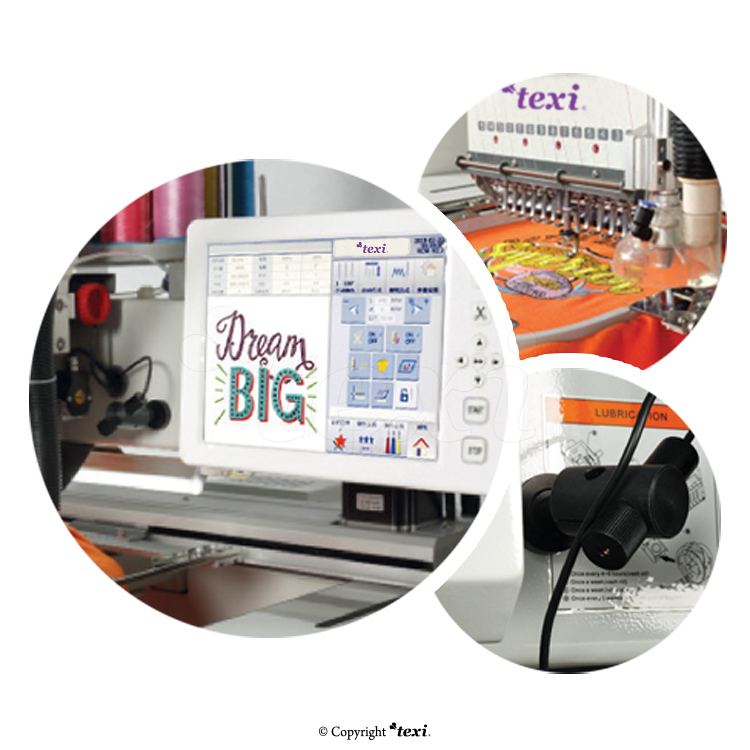

- 7'' touch panel with necessary functions (START, STOP key, auto thread trimming, color change, frame move, embroidery status, numerical keys for needle choice)
- possibility of edition, erasing, copying, scaling of the design on the panel's screen
- following the progress of the embroidery in real time on the panel
- automatic thread trimming system
- auto thread break detection
- external thread winder
- laser trace device
- max. sewing speed 1.200 stitches / min.
- possibility of checking the contour of the embroidery
- built-in USB port
- multilingual menu
- works with all popular formats: Tajima, Barudan, ZSK (.dst, .dsb, .fdr)
- built-in LED light
- emergency switch
- machine's sizes: 75 x 74 x 85 cm
- 150 W energy saving SERVO motor
- power supply: 220-240V or 110V / 50-60Hz
- weight 90 kg

For this machine we recommend SCHMETZ needles, system DBXK5 in proper sizes.

Optional equipment:
- professional embroidery design software - CHROMA Inspire
- belt hoop
- shoe hoop
- sequin device
- cording device

Specification of the device for sewing on beads:
- two ribbon feeders with beads.
- beads size from 2 - 2.5 mm

1 year warranty


Arrange a presentation - write on sales@strima.com or call us: +48 61 8950 950
